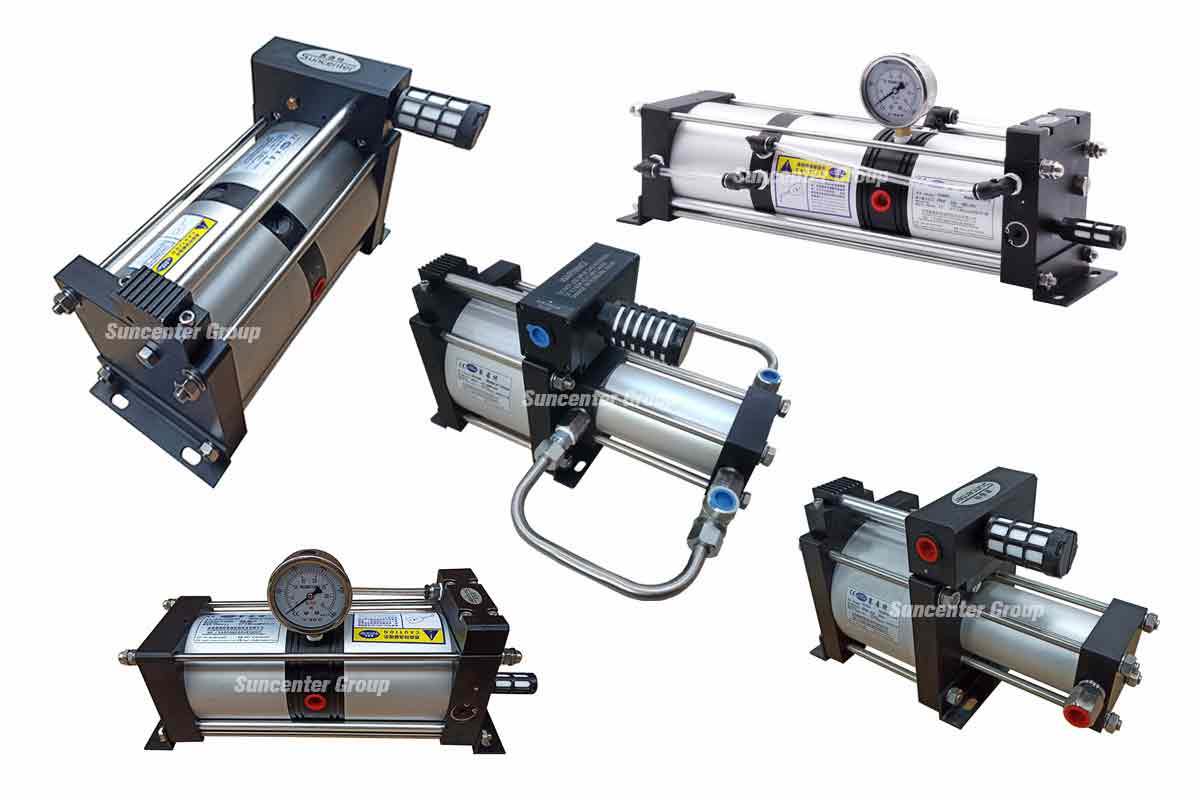

Air Pressure Amplifier Pump / System
Features
Driven by 3-8 bar compressed air, no electric spark risk
Wide range of pressures for your choice, maximum pressure up to 80 bar
Outlet pressure can be fine regulated
Easy to install, operate and maintain
Automatic pressure holding, the pump will automatically reactivate to replenish pressure once the loop pressure dropped

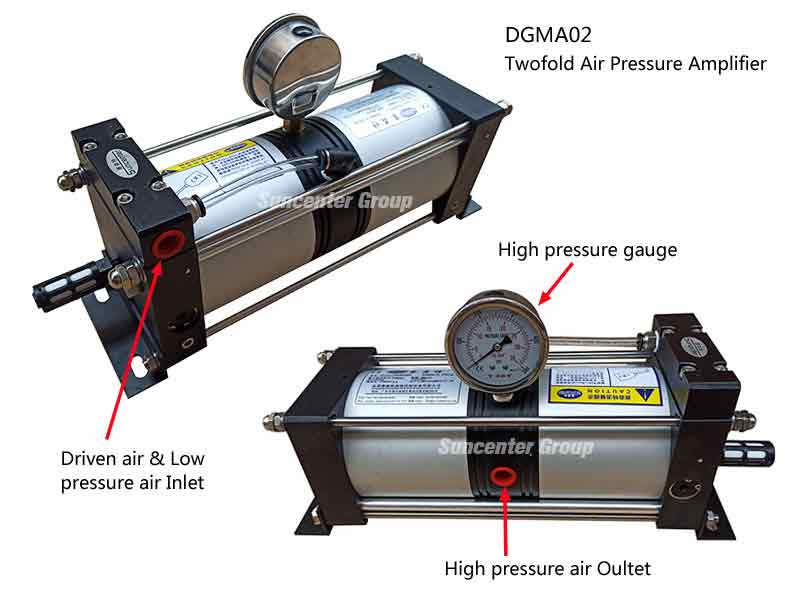

DGMA02 Air Pressure Amplifier Pump

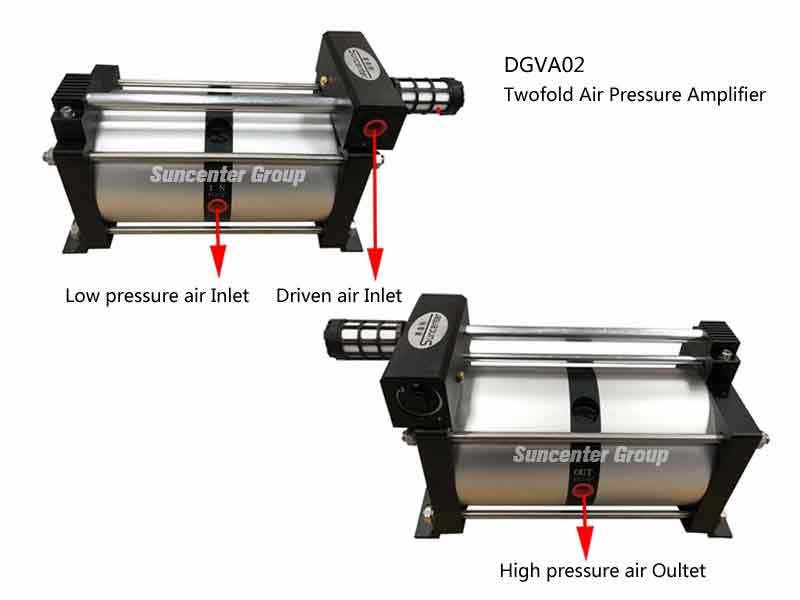

DGVA02 Air Pressure Amplifier Pump

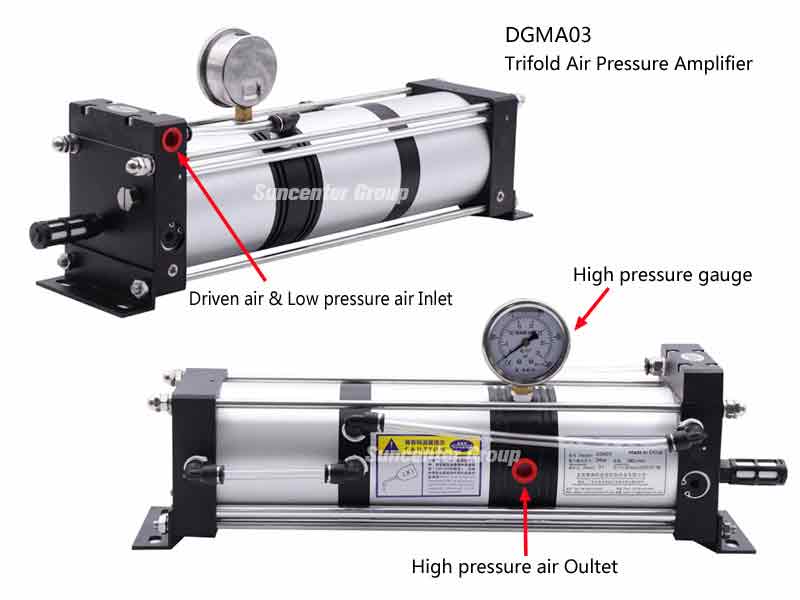

DGMA03 Air Pressure Amplifier Pump

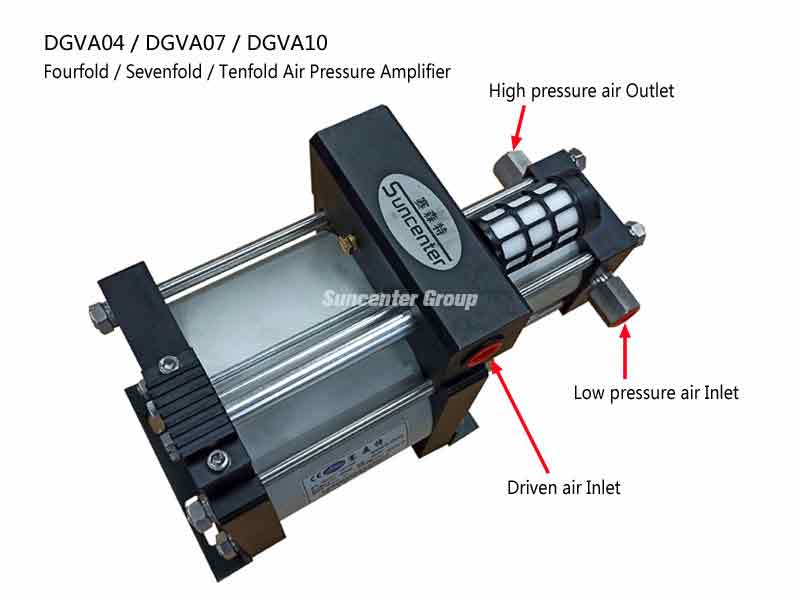

DGVA04 / DGVA07 /DGVA10 Air Pressure Amplifier Pump

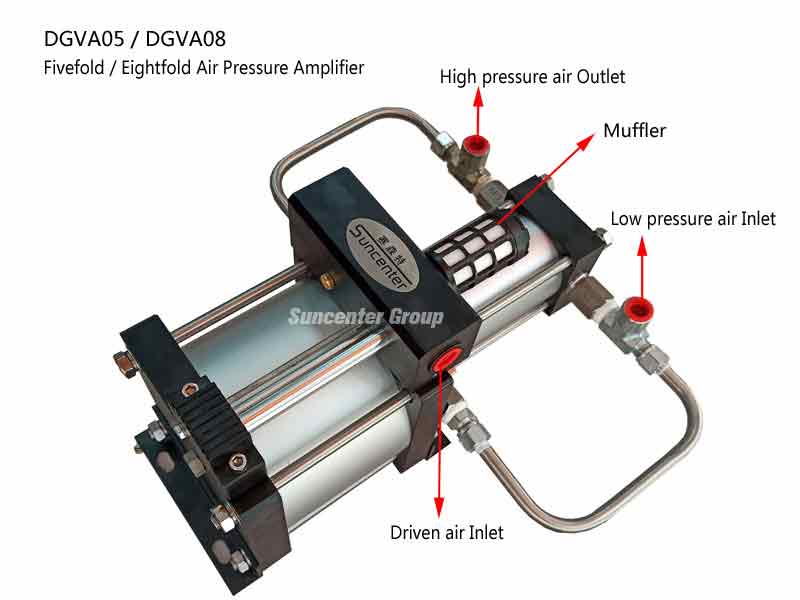

DGVA05 / DGVA08 Air Pressure Amplifier Pump
Models & Parameters
| Model | Pressure boost ratio | Max air outlet pressure | Driven air inlet port | LP air inlet port | HP air outlet port | Max Flow rate (L/min) |
| DGMA02 | 2:1 | 16 bar | PT 3/8 | - | PT 3/8 | 580 |
| DGMA02 | 2:1 | 16 bar | G 1/2 | PT 1/2 | PT 1/2 | 1600 |
| DGMA03 | 3:1 | 24 bar | PT 3/8 | - | PT 3/8 | 420 |
| DGMA04 | 4:1 | 30 bar | G 1/2 | PT 1/2 | PT 1/2 | 500 |
| DGMA05 | 5:1 | 40 bar | G 1/2 | PT 1/2 | PT 1/2 | 820 |
| DGMA07 | 7:1 | 56 bar | G 1/2 | PT 3/8 | PT 3/8 | 280 |
| DGMA08 | 8:1 | 64 bar | G 1/2 | PT 3/8 | PT 3/8 | 500 |
| DGMA10 | 10:1 | 80 bar | G 1/2 | PT 3/8 | PT 3/8 | 220 |

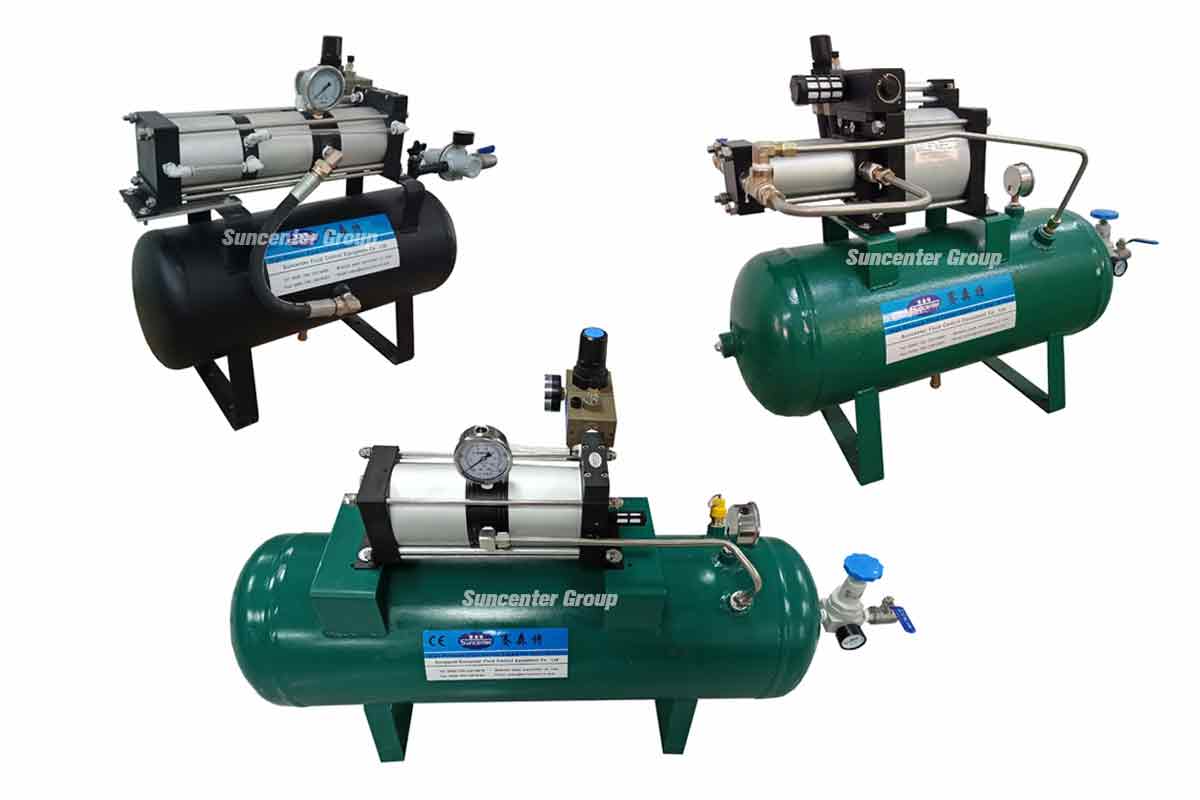

Air Pressure Amplifier System

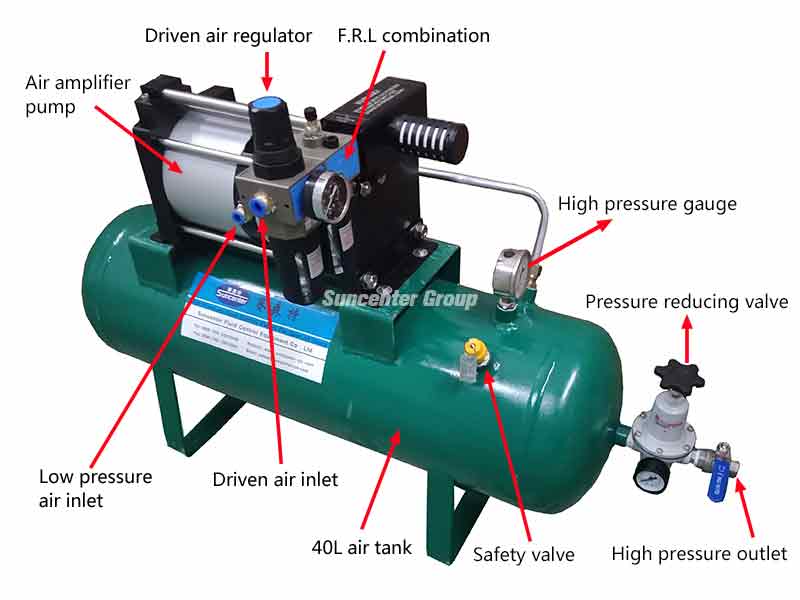

Air amplifier system = Air amplifier pump + Valves + Gauges + Tubes + Tank Composition of Standard Air amplifier system
Air amplifier pump
F.R.L combination (adjust driven air pressure+ filter+ lubricant)
Air tank (20L / 40L optional)
Driven air switch, High pressure needle valve, High pressure gauge, Pressure reducing valve
Models & Parameters
| Model | Pressure boost ratio | Max air outlet pressure | Driven air inlet port | LP air inlet port | HP air outlet port | Max Flow rate (L/min) |
DGS-DGMA02 | 2:1 | 16 bar | PT 3/8 | - | PT 3/8 | 580 |
| DGS-DGMA02 | 2:1 | 16 bar | G 1/2 | PT 1/2 | PT 1/2 | 1600 |
| DGS-DGMA03 | 3:1 | 24 bar | PT 3/8 | - | PT 3/8 | 420 |
| DGS-DGMA04 | 4:1 | 30 bar | G 1/2 | PT 1/2 | PT 1/2 | 500 |
| DGS-DGMA05 | 5:1 | 40 bar | G 1/2 | PT 1/2 | PT 1/2 | 820 |
| DGS-DGMA07 | 7:1 | 56 bar | G 1/2 | PT 3/8 | PT 3/8 | 280 |
| DGS-DGMA08 | 8:1 | 64 bar | G 1/2 | PT 3/8 | PT 3/8 | 500 |
| DGS-DGMA10 | 10:1 | 80 bar | G 1/2 | PT 3/8 | PT 3/8 | 220 |
