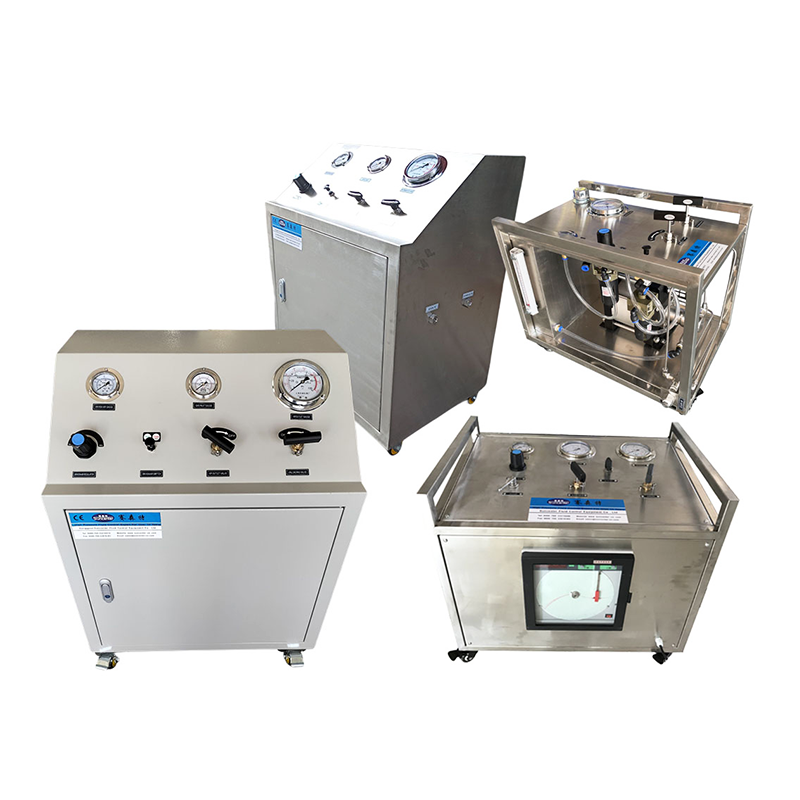

SUNCENTER- Hydraulic Tension Pumps are compact and delicacy solution tailored to customer specific requirements with air driven liquid pumps as well as all accessories to be fitted and installed on the frame or in closed cabinet. To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator. The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure. SUNCENTER Hydraulic power packs are available with wide range of pressure ratios make these series of pumps ideal for powering a variety of oil/hydraulic operations. The maximum operating pressure up to 4000 bar.
Features
Applicable medium: water, oil, chemical reagent
Designed for Hydraulic pressure test & Chemical reagent injection
Driven by 3-8 bar compressed air, no electric spark risk
Wide range of pressures for your choice, maximum pressure up to 4000 bar
Outlet pressure adjustable
Automatic pressure holding, the booster will automatically restart to replenish pressure once the loop pressure dropped
Convenient to use & Easy to maintain

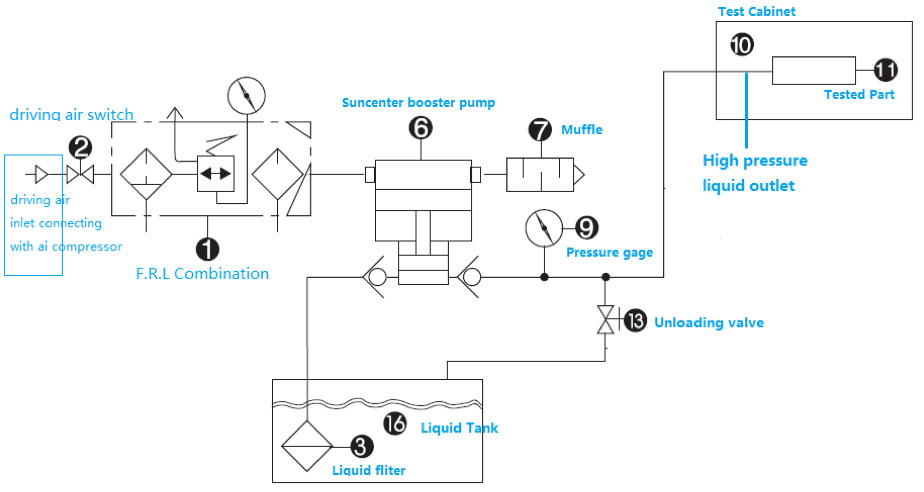

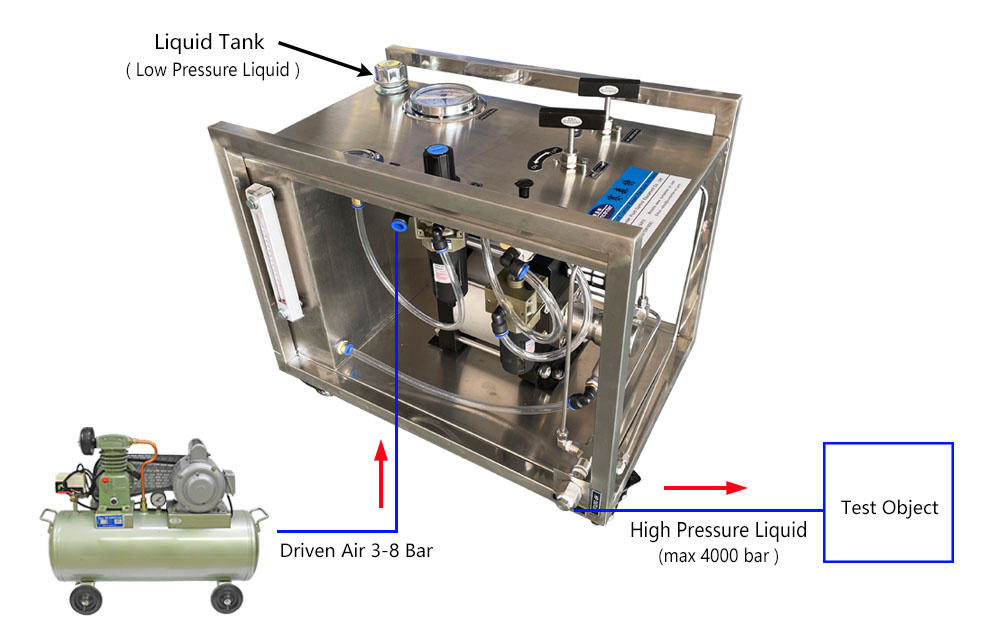

Working Circuit

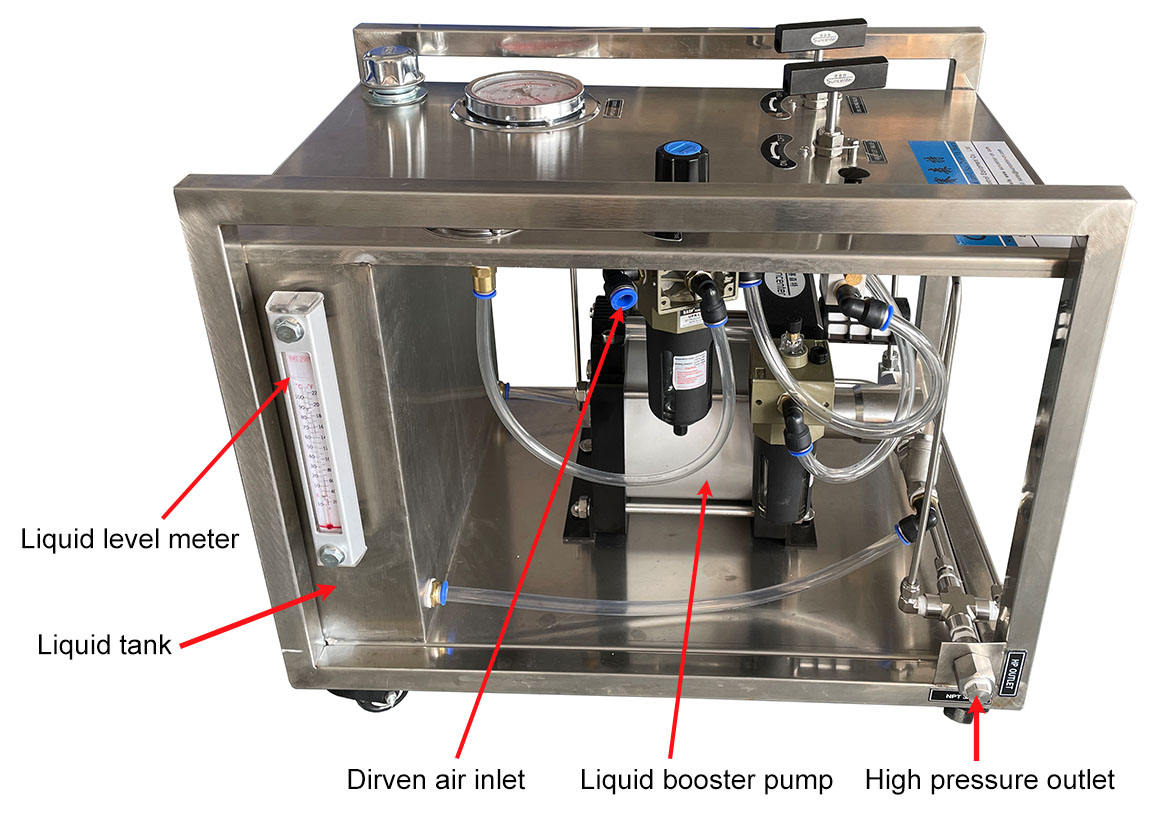

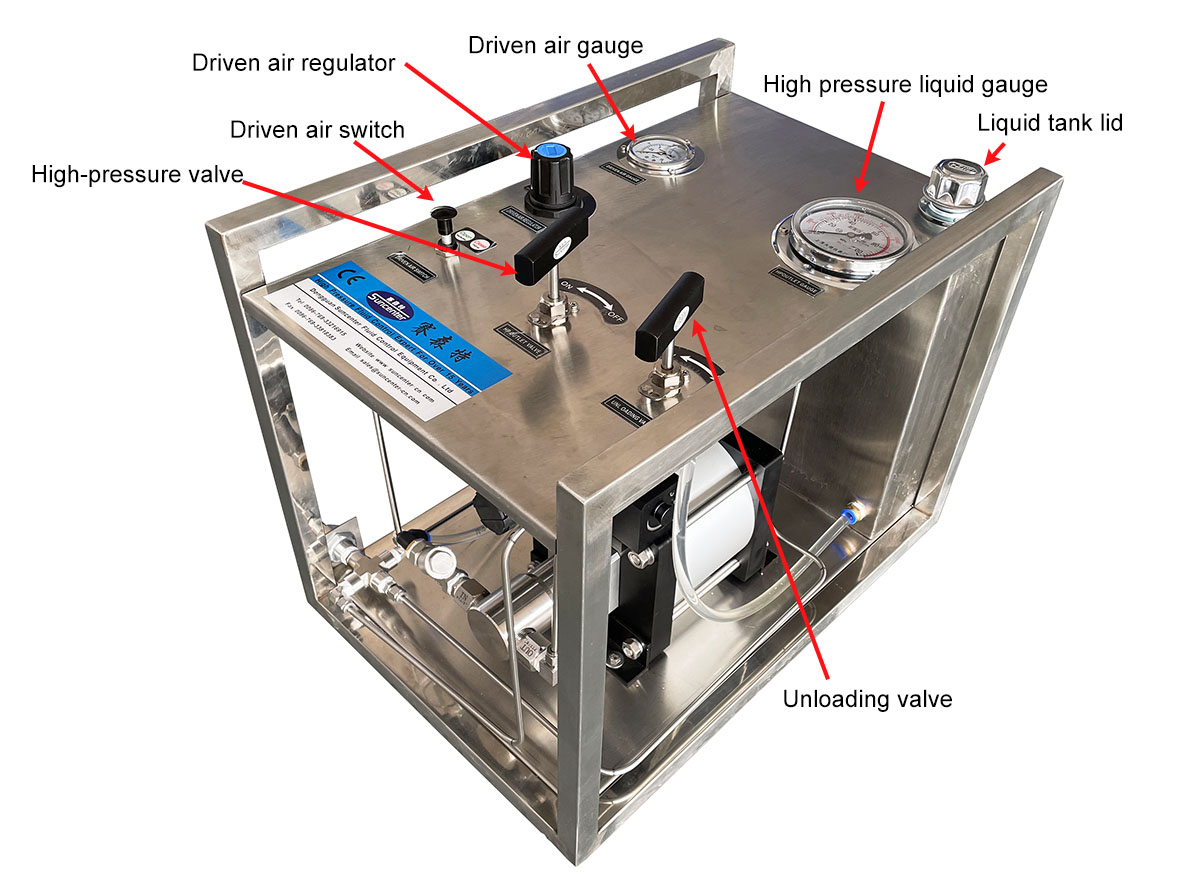

Structure & Composition
High Pressure Hydraulic Tension Pumps system = Hydraulic Tension Pumps + Valves + Gauges + Tubes + Cart
Composition of Standard boost system
Hydraulic Tension Pumps (DGM/DGG/DGGD/2DGGD four series for choice)
F.R.L combination for driven air
(Function: adjust air pressure + add lube oil + filter impurities)
Driven air switch, driven air pressure gauge
Liquid tank equipped
High pressure needle valve, High pressure gauge, unload valve, pipes

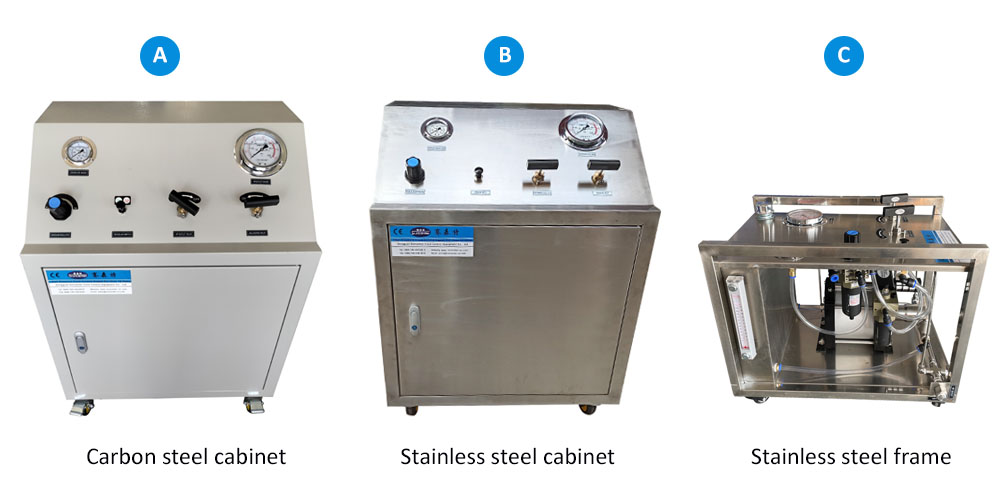

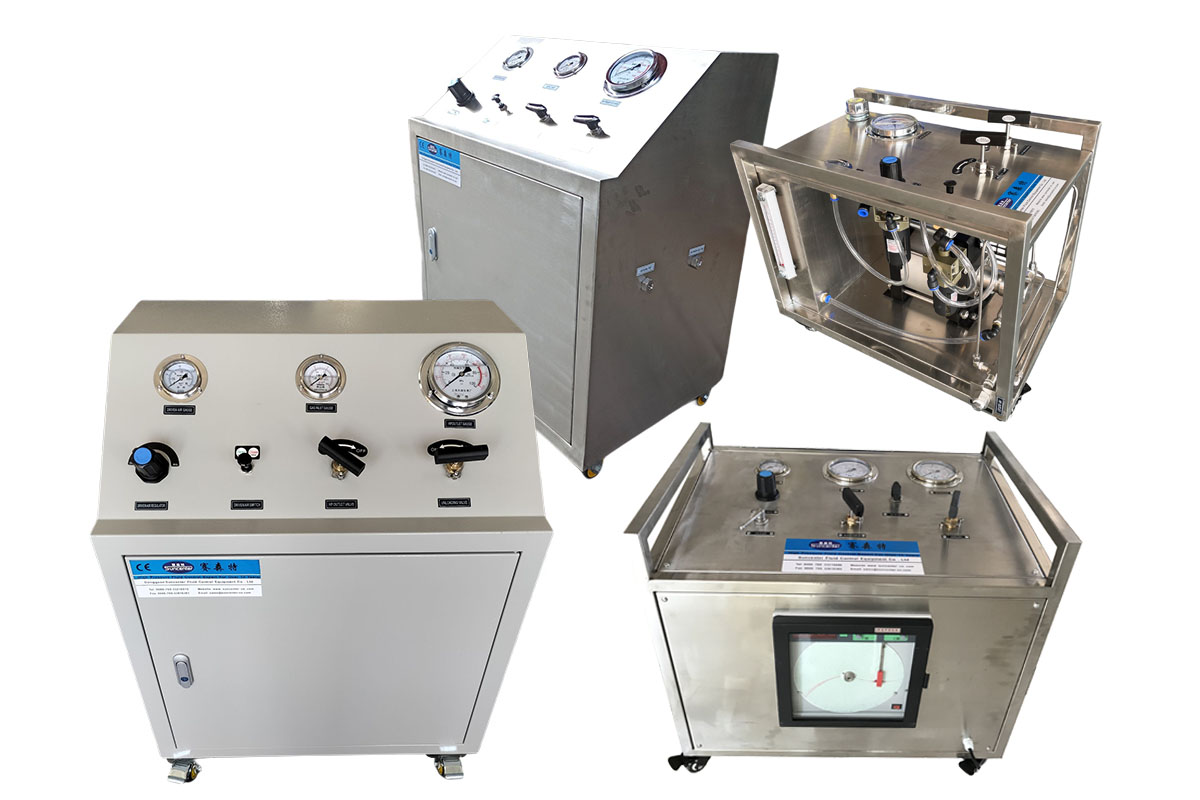

Cabinet ( Three options for you choice )

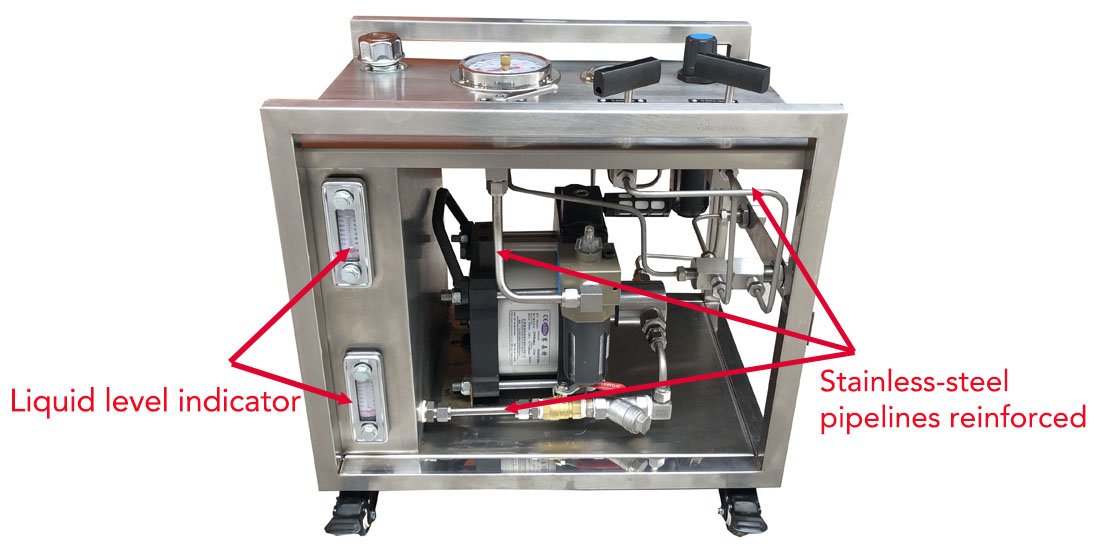

Stainless-steel tubes Optional

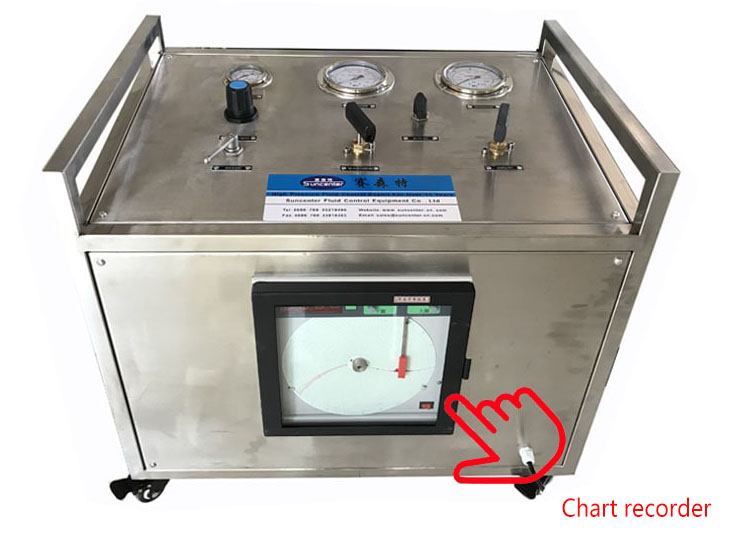

Optional: Chart recorder

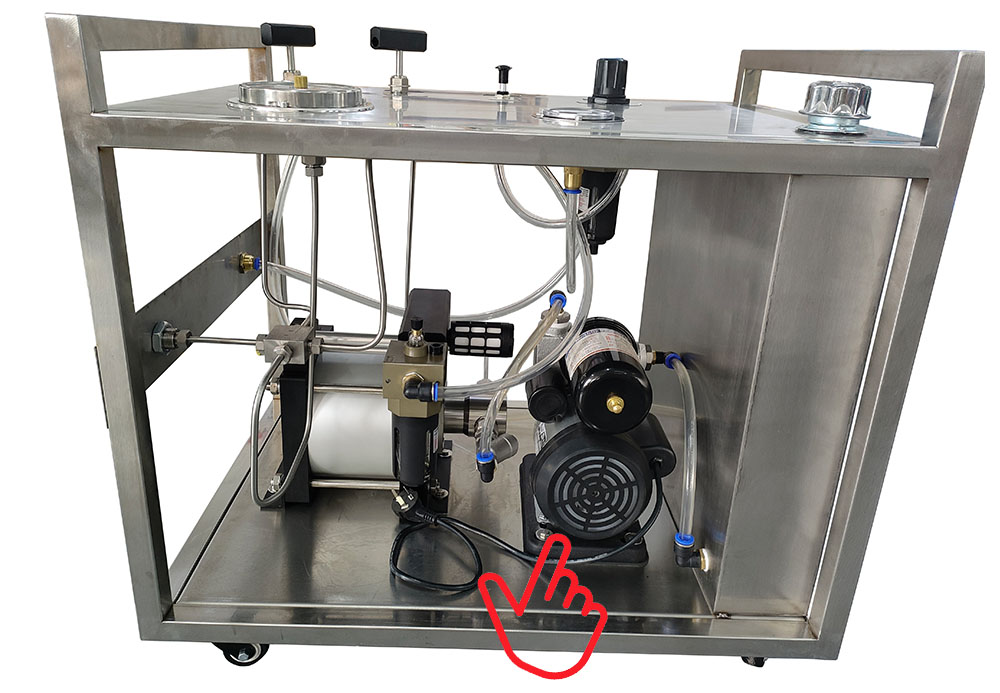

Optional: Water injection pump

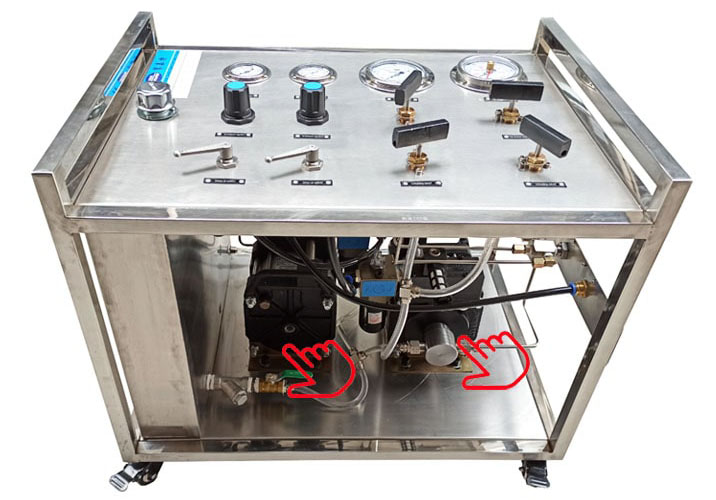

Optional: Multiple hydraulic pumps work together to increase flow
Operation Instruction
DLS-DGG Series
Model | Pressure boost ratio | Driven air pressure | Max outlet pressure | Driven air inlet port | Liquid inlet port | Liquid outlet port | Max Flow rate (L/min) |
DLS-DGG7 | 7:1 | 3-8 bar | 56 bar | G 1/2 | PT 1/2 | PT 1/2 | 26 |
DLS-DGG10 | 10:1 | 3-8 bar | 80 bar | G 1/2 | PT 1/2 | PT 1/2 | 18.84 |
DLS-DGG16 | 16:1 | 3-8 bar | 128 bar | G 1/2 | PT 1/2 | PT 1/2 | 12.42 |
DLS-DGG28 | 28:1 | 3-8 bar | 224 bar | G 1/2 | PT 1/2 | PT 1/2 | 7.11 |
DLS-DGG40 | 40:1 | 3-8 bar | 320 bar | G 1/2 | PT 3/8 | PT 3/8 | 4.89 |
DLS-DGG64 | 64:1 | 3-8 bar | 512 bar | G 1/2 | PT 3/8 | PT 3/8 | 3.08 |
DLS-DGG80 | 80:1 | 3-8 bar | 640 bar | G 1/2 | PT 3/8 | PT 3/8 | 2.44 |
DLS-DGG100 | 100:1 | 3-8 bar | 800 bar | G 1/2 | PT 3/8 | PT 3/8 | 1.92 |
DLS-DGG130 | 130:1 | 3-8 bar | 1040 bar | G 1/2 | PT 3/8 | PT 3/8 | 1.47 |
DLS-DGG175 | 175:1 | 3-8 bar | 1400 bar | G 1/2 | PT 3/8 | PT 3/8 | 1.14 |
DLS-DGG240 | 240:1 | 3-8 bar | 1920 bar | G 1/2 | PT 3/8 | PT 3/8 | 0.86 |
DLS-DGG300 | 300:1 | 3-8 bar | 2400 bar | G 1/2 | PT 1/4 | HF 4 | 0.72 |
DLS-DGG400 | 400:1 | 3-8 bar | 3200 bar | G 1/2 | PT 1/4 | HF 4 | 0.48 |
DLS-DGG510 | 510:1 | 3-8 bar | 4080 bar | G 1/2 | PT 1/4 | HF 4 | 0.70 |
DLS-DGGD Series
Model | Pressure boost ratio | Driven air pressure | Max outlet pressure | Driven air inlet port | Liquid inlet port | Liquid outlet port | Max Flow rate (L/min) |
DLS-DGGD4 | 4:1 | 3-8 bar | 32 bar | G 1/2 | PT 1/2 | PT/NPT 1/2 | 70 |
DLS-DGGD6 | 6:1 | 3-8 bar | 48 bar | G 1/2 | PT 1/2 | PT/NPT 1/2 | 48.6 |
DLS-DGGD10 | 10:1 | 3-8 bar | 80 bar | G 1/2 | PT 1/2 | PT 1/2 | 30.61 |
DLS-DGGD16 | 16:1 | 3-8 bar | 128 bar | G 1/2 | PT 1/2 | PT 1/2 | 19.73 |
DLS-DGGD28 | 28:1 | 3-8 bar | 224 bar | G 1/2 | PT 1/2 | PT 1/2 | 11.3 |
DLS-DGGD40 | 40:1 | 3-8 bar | 320 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 7.69 |
DLS-DGGD64 | 64:1 | 3-8 bar | 512 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 4.94 |
DLS-DGGD80 | 80:1 | 3-8 bar | 640 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 3.96 |
DLS-DGGD100 | 100:1 | 3-8 bar | 800 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 3.13 |
DLS-DGGD130 | 130:1 | 3-8 bar | 1040 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 2.4 |
DLS-DGGD175 | 175:1 | 3-8 bar | 1400 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 1.81 |
DLS-DGGD240 | 240:1 | 3-8 bar | 1920 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 1.5 |
DLS-DGGD300 | 300:1 | 3-8 bar | 2400 bar | G 1/2 | PT 1/4 | PT/NTP 1/4 | 1.3 |
DLS-DGGD400 | 400:1 | 3-8 bar | 3200 bar | G 1/2 | PT 1/4 | PT/NTP 1/4 | 0.79 |
DLS-2DGGD Series
Model | Pressure boost ratio | Driven air pressure | Max outlet pressure | Driven air inlet port | Liquid inlet port | Liquid outlet port | Max Flow rate (L/min) |
DLS-2DGGD10 | 10:1 | 3-8 bar | 80 bar | G 1/2 | PT 3/4 | PT 3/4 | 61.22 |
DLS-2DGGD16 | 16:1 | 3-8 bar | 128 bar | G 1/2 | PT 3/4 | PT 3/4 | 39.46 |
DLS-2DGGD28 | 28:1 | 3-8 bar | 224 bar | G 1/2 | PT 1/2 | PT 1/2 | 22.6 |
DLS-2DGGD40 | 40:1 | 3-8 bar | 320 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 15.38 |
DLS-2DGGD64 | 64:1 | 3-8 bar | 512 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 9.88 |
DLS-2DGGD80 | 80:1 | 3-8 bar | 640 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 7.92 |
DLS-2DGGD100 | 100:1 | 3-8 bar | 800 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 6.26 |
DLS-2DGGD130 | 130:1 | 3-8 bar | 1040 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 4.8 |
DLS-2DGGD175 | 175:1 | 3-8 bar | 1400 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 3.62 |
DLS-2DGGD240 | 240:1 | 3-8 bar | 1920 bar | G 1/2 | PT 3/8 | PT/NPT 3/8 | 2.5 |
DLS-2DGGD300 | 300:1 | 3-8 bar | 2400 bar | G 1/2 | PT 1/4 | PT/NTP 1/4 | 2.2 |
DLS-2DGGD400 | 400:1 | 3-8 bar | 3200 bar | G 1/2 | PT 1/4 | PT/NTP 1/4 | 1.58 |
