Automatic FM200 Extinguisher Filling Machine

Automatic FM200 Extinguisher Filling Machine

MOQ
1 Set
Brand Name
Suncenter
Certificate
CE、SGS
Warranty
1 Year
Packaging
Wooden packaging box
Shipping Port
SHENZHEN/GUANGZHOU/HONGKONG
Place of Origin
China
Delivery Time
60 Days
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

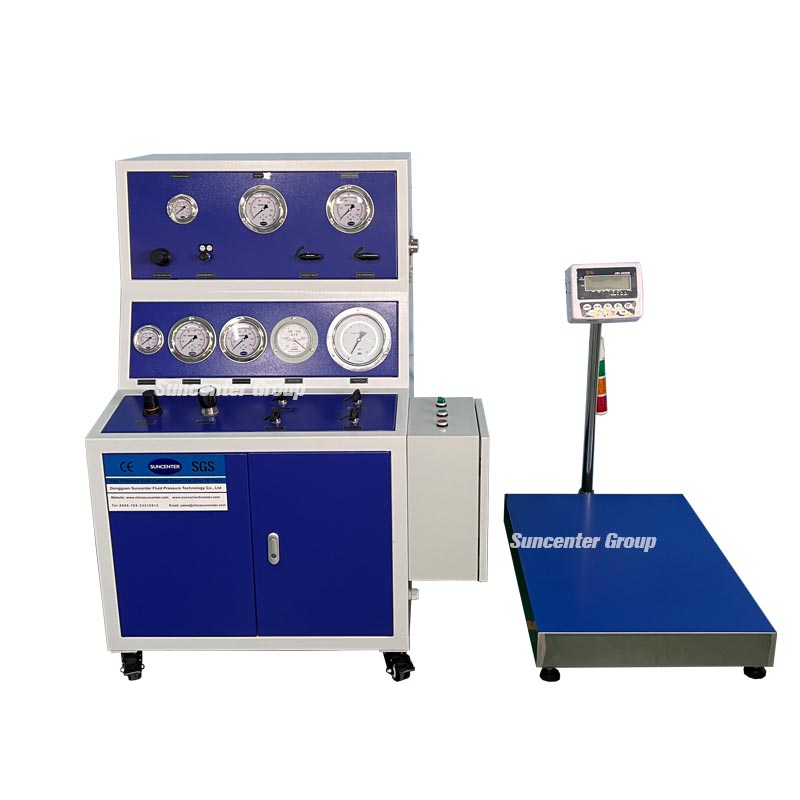

Automatic FM200 Extinguisher Filling Machine

product-Automatic FM200 Extinguisher Filling Machine-Suncenter-img

The machine is specially designed for refilling new FM-200 (HFC-227ea) /NOVEC and Nitrogen into fire extinguisher.

The machine adopts compressed-air as power source, through the air-driven gas booster pump to fill FM-200 (HFC-227ea) /NOVEC / Nitrogen into fire extinguisher.

When filling weight reaches your preset weight value, the machine will stop filling automatically, meanwhile, the machine will remind the operator with flashing alarm.


Working Circuit

product-Suncenter-img

Features

  • Safely used in explosive-proof areas

  • 4 in 1 of Fire bottle vacuuming + FM200 filling + N2 filling + Weighing

  • Automatic filling & full stop

  • Max filling pressure 40 Bar (higher filling pressure is customizable)

  • Filling pressure can be regulated

  • Filling weight can be pre-set

  • Equipped with nitrogen pressure reducing valve and precision pressure gauge to accurately monitor nitrogen filling pressure


Technical Parameters

  • Filling pump power source: 3-8 bar compressed air

  • Vacuuming pump power supply: 220V

  • Medium: FM200/ NOVEC/ Nitrogen

  • Vacuuming pressure: -0.08MPa

  • Maximum gas filling pressure: 4MPa

  • Filling rate: 8-10kg/minute

  • Pressure accuracy: ± 0.1MPA

  • Weighing range: 0-500kg

  • Weighing accuracy: ± 1kg


Operating Procedure

product-Suncenter-img

(1). Vacuum fire bottle:

Extract residual reagent out of the fire bottle, vacuum the fire bottle to -0.07MPa.

(2). Fill new reagent into fire bottle:

Preset a filling weight on electronic scale, then fill new reagent such as FM-200 (HFC-227ea), NOVEC. When the preset filling weight is reached, stop filling automatically, meanwhile, flash alarm activate.

(3). Fill Nitrogen into fire bottle
