Electric-powered Hydraulic Tube Expander

Electric-powered Hydraulic Tube Expander

1 Set
Brand Name
1 Year
Wooden packaging box
Shipping Port
Place of Origin
Delivery Time
60 Days
Get Latest Price
Get the latest price
Quantity Needed:

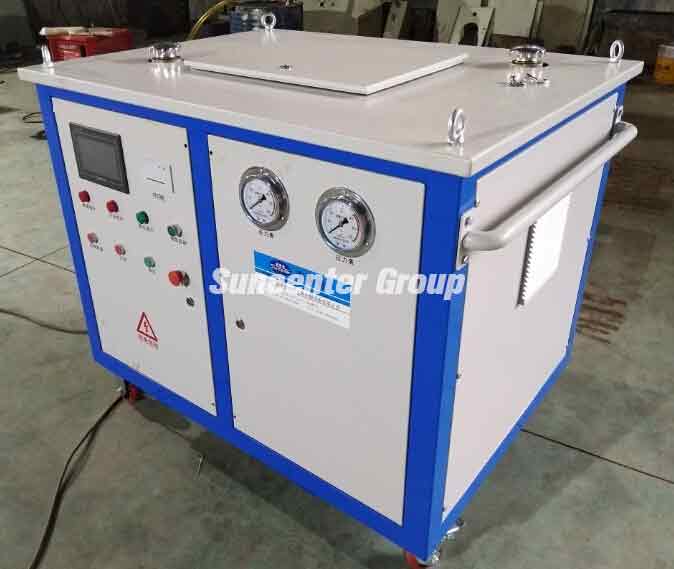

Electric-powered Hydraulic Tube Expander

product-Suncenter-Electric-powered Hydraulic Tube Expander-img


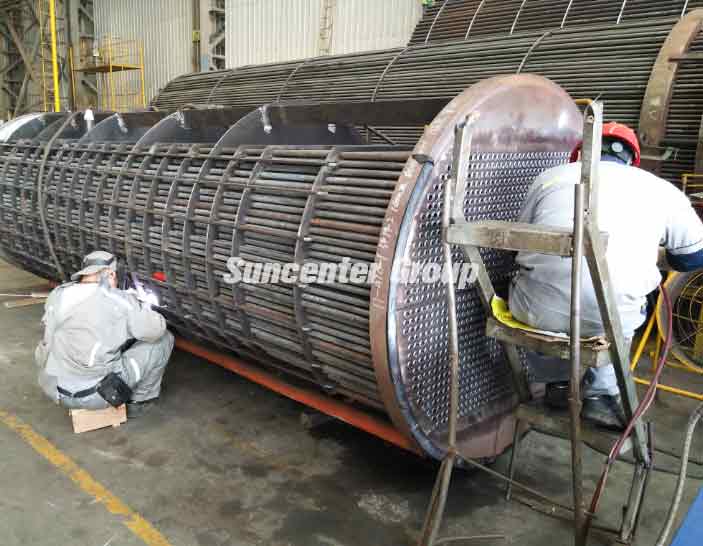

This Electric powered hydraulic tube expander is a special equipment used to expansion jointing tubes and tube sheet in the manufacture of boilers, heat exchangers, condensers, high pressure heaters and other equipment. The equipment can reliably expand heat exchange tubes of various specifications and materials, and is especially suitable for the expansion of thick tube sheets and large-diameter tube heat exchangers.

Working Principle


This equipment adopts hydraulic expansion joint method. The electric motor in the hydraulic power pack drives the hydraulic pump to pressurize the water or hydraulic oil, then the high-pressure hydraulic pressure is delivered to the expanding-handle, and finally reaches the expanding-rob. The expanding-rob is expanded under the drive of high hydraulic pressure to complete expansion-joint.


  • Hydraulic expansion joint, there is no oil pollution at the expansion joint, and the welding after expansion is not affected

  • Automatic water replenishment, automatic cooling

  • PLC control, the outlet pressure can be set accurately

  • Maximum outlet pressure up to 350Mpa

  • Pressure-holding function, the pressure-holding time can be selected arbitrarily from 0.1 to 50 seconds

  • Electrical protection device built-in

  • Expanding-handle weight is 0.8Kg only, easy to operate

  • It can work continuously, one person can continuously expand and connect, and can expand 6-8 tubes per minute


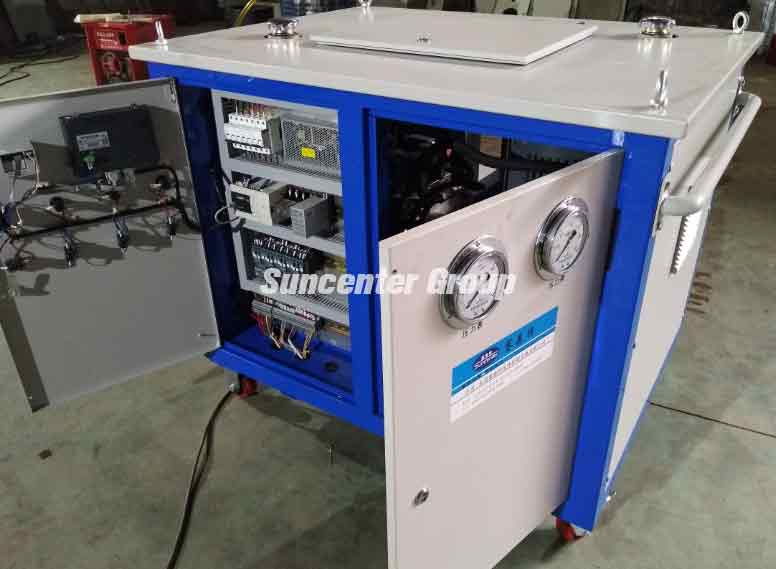

The Hydraulic tube expander is composed of hydraulic control system, pressure amplification system and hydraulic expansion-joint control system.

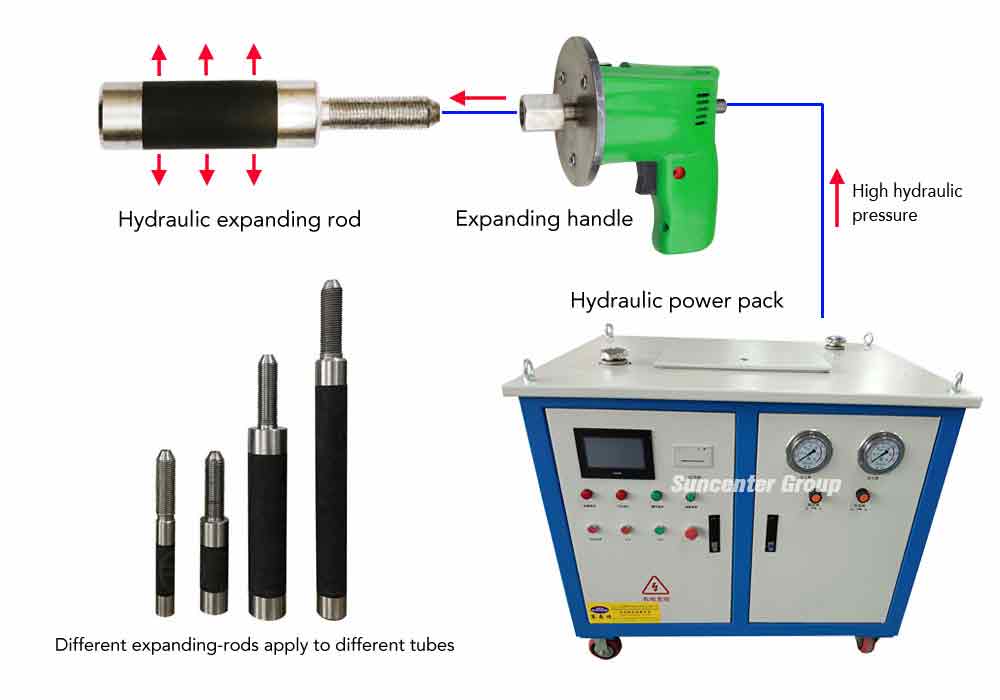

The Hydraulic tube expanding machine includes three main components:

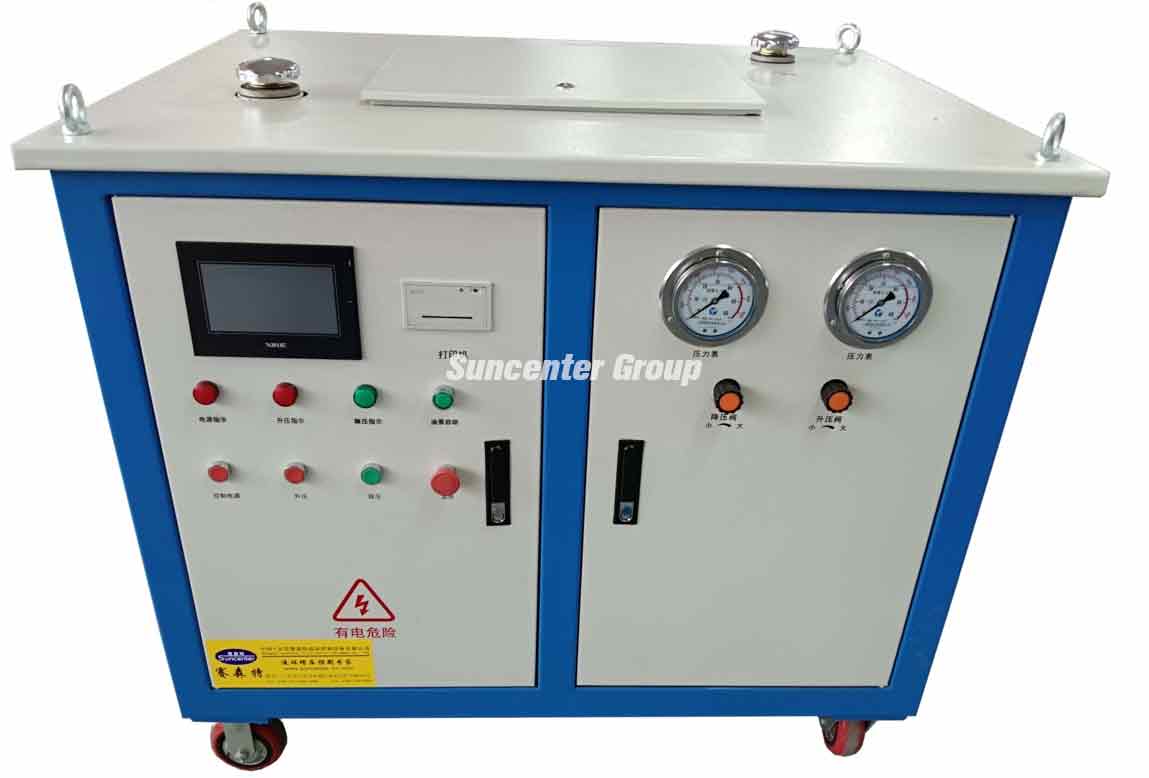

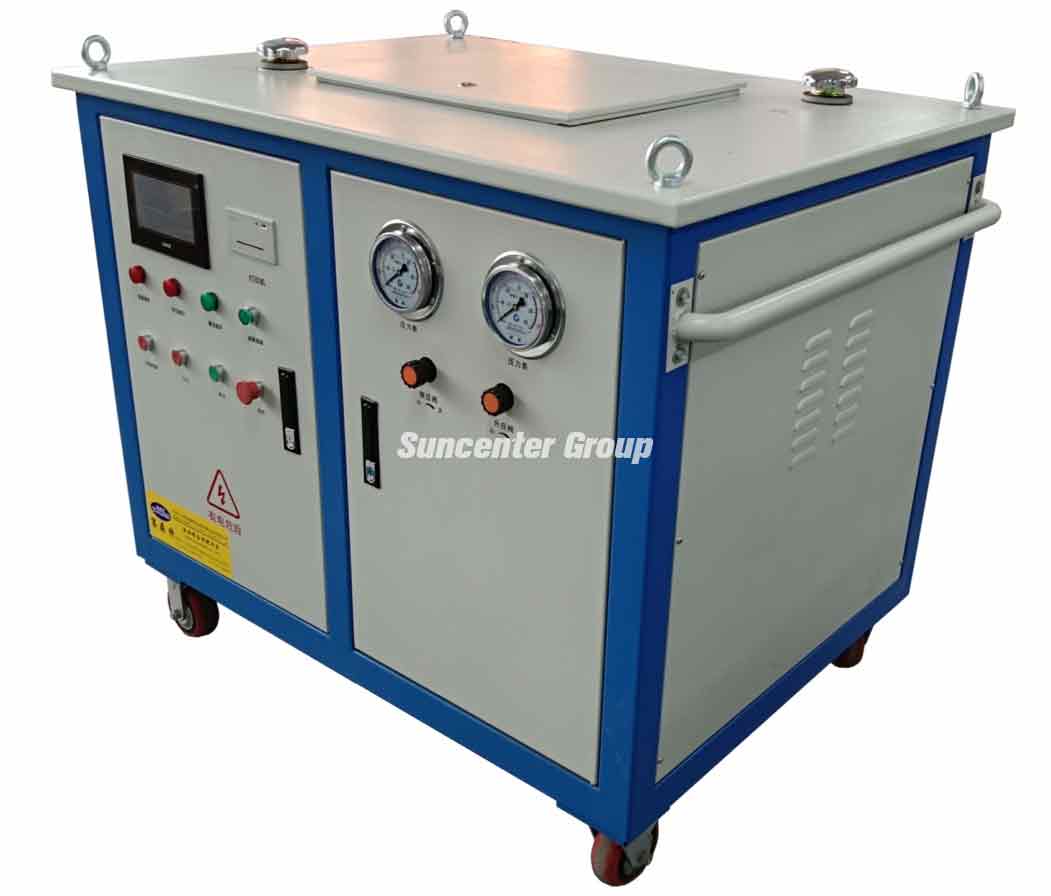

  • Hydraulic power pack: generate and output high hydraulic pressure

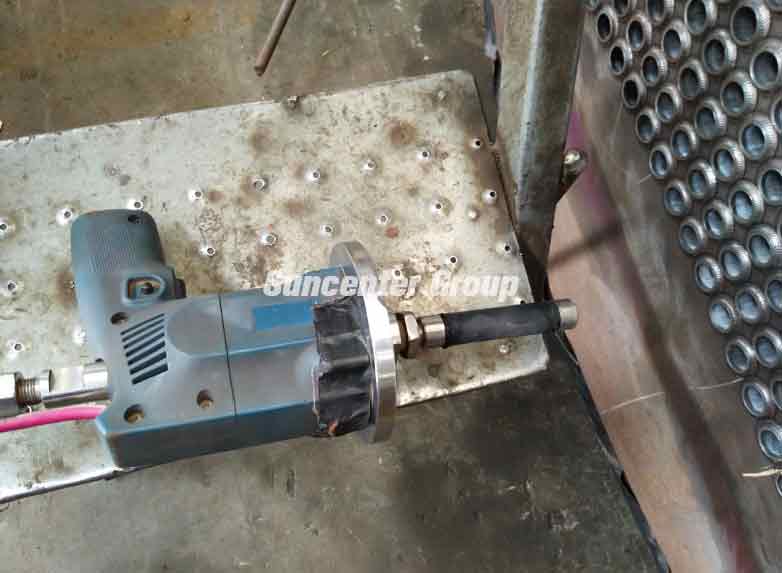

  • Expanding-handle

  • Hydraulic expanding-rod:

    product-Electric-powered Hydraulic Tube Expander-Suncenter-img

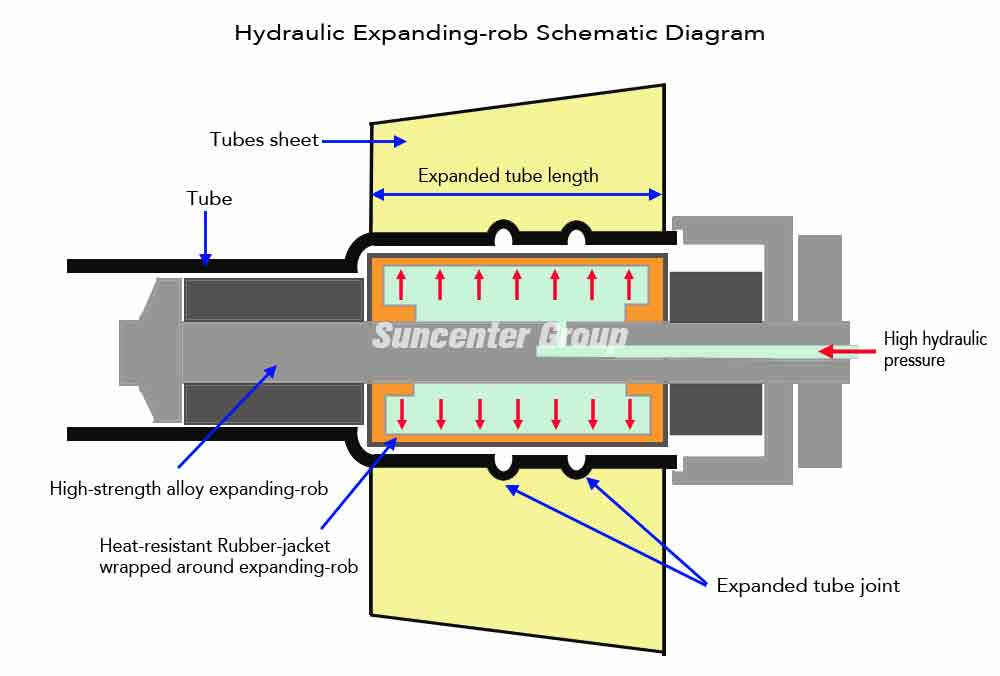

The one-piece hydraulic expanding-rod is composed of high-strength alloy steel core rod and high-pressure resistant elastic rubber. The integrated design can withstand ultra-high pressure without using seals. It is easy to use and has high work efficiency. It uses the radial pressure generated by the high-pressure hydraulic pressure input from the hydraulic power pack to the elastic rubber body to expand tubes on the tube sheet, so that the pipe material undergoes plastic deformation, so as to realize the expansion joint between tubes and the tube sheet.

Maximum outlet pressure350MpaExpanding handle weight0.8Kg
Tube's outer diameter≥5mmHydraulic power pack dimension126x96x150cm
Tube sheet's thickness≥6mmHydraulic power pack weight450Kg
shell of tube0.2 - 18 mmMotor power5.5KW
Expansion length6 - 4600 mmTotal power6.5KW
Connector of expanding-robM10X1 (mm)Hydraulic pump flow rate10L/min
Tube sheet holes roughness6.3μmLiquid tank100L
Expansion-joint mediumwater or oil

Electric power

Expansion-joint efficiency5-8 tubes/minute Control modePLC with touch screen

Operation Instructions

1. Turn on “Power” button.

2. Set pressure value in touch screen.

3. Evacuate the air in the high-pressure hose and the expanding-rod:

4. The operation method of the expanding- rod: insert expanding-rod into tube until the expansion position, press the switch on the expanding-handle and then release it. At this time, the "boost" indicator light is on, and the machine starts to automatically control the expansion process; When the pressure reaches your preset pressure value, the boosting stops, and it automatically enters the depressurizing state. At this time, the "depressurization" indicator lights up; after the depressurization is completed, the expansion rod can be pulled out. Then expand the next tube, and so on.
