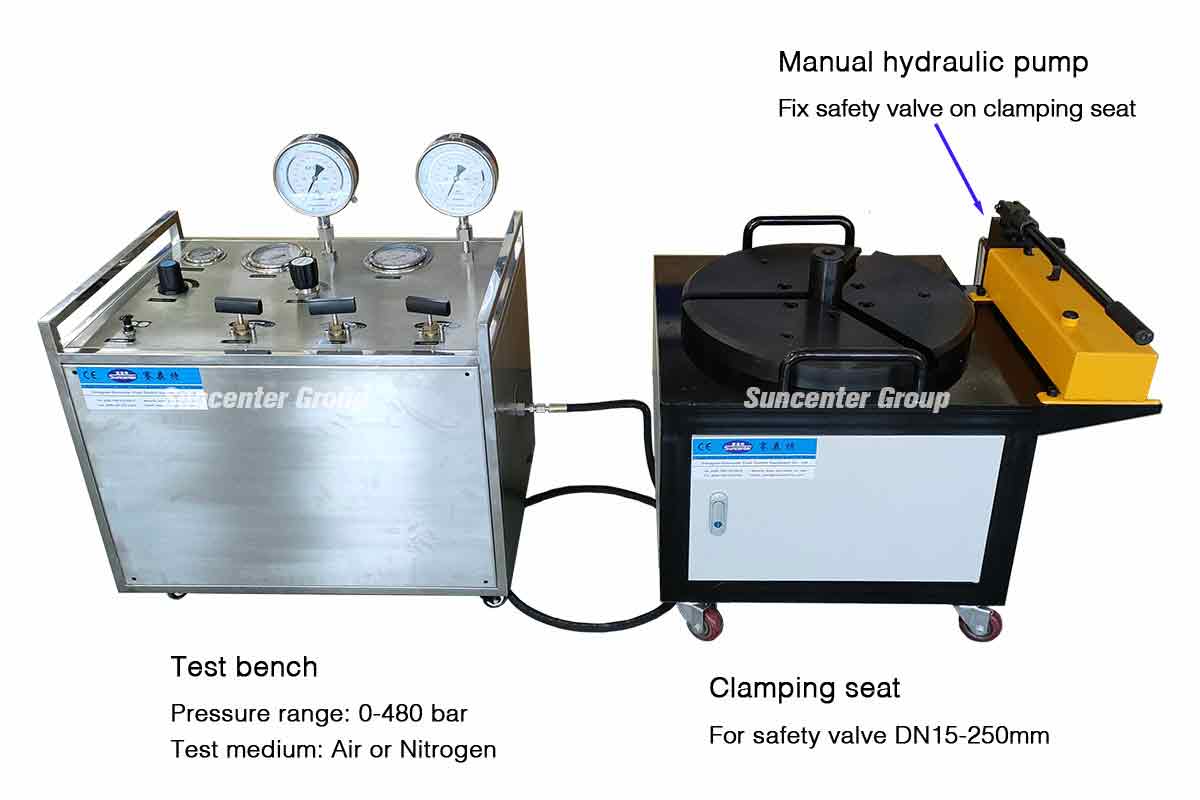

Portable Safety Valve Test Bench

Features

Driven by compressed-air, No flame & spark risk

Two test medium: Air or Nitrogen for your choice

Applicable to safety valves DN15-250mm

Manual operation

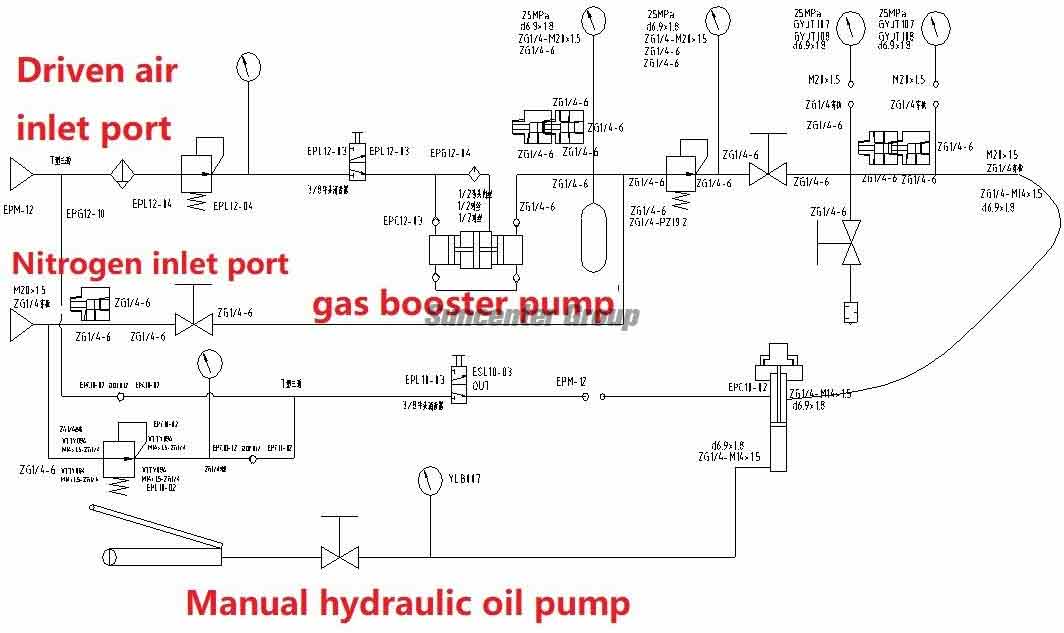

System Composition

1). Power system (High-pressure power source).

Air-driven gas booster pump-DGT60

Driven air pressure: 3-8bar

Output gas/air pressure : 0-480bar;

High-pressure power source (Test medium): Air or Nitrogen

2). Clamping seat:

The power of the clamping seat is provided by a manual hydraulic pump.

The manual hydraulic pump generates hydraulic to fix safety valve on clamping seat.

Applicable valve diameter range: DN15-250mm

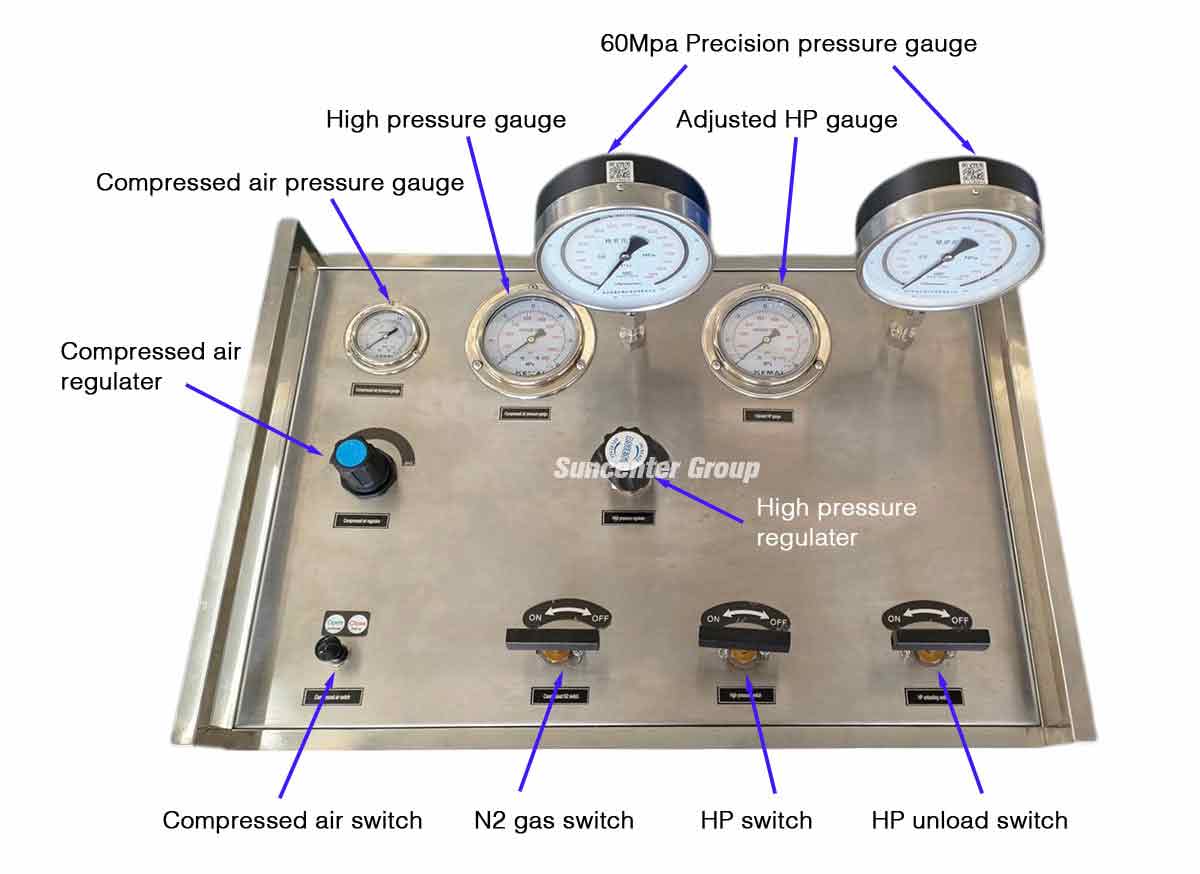

Main components
